Schmid Ekko U 6745h
Chimney inserts by Schmid - for the inner values
What would a fireplace be without the right use? It is he who keeps your home comfortably warm. In order to integrate into your fireplace a high-quality and functional core, the use of the Schmid fireplace inserts is ideal. The heat output that best suits depends on the size of the installation room. Therefore you will find in our range Schmid fireplace inserts from 5 to 14 kW. They are characterized by many extravagant formats, such as rounded, multi-page or extra-wide dimensions. All models have an outside air connection to feed the combustion air into the fireplace insert. This construction provides a great security, because the air that needs the fire, is not pulled out of the room. Through various options, you can choose the exact model.
SERIES Ekko U

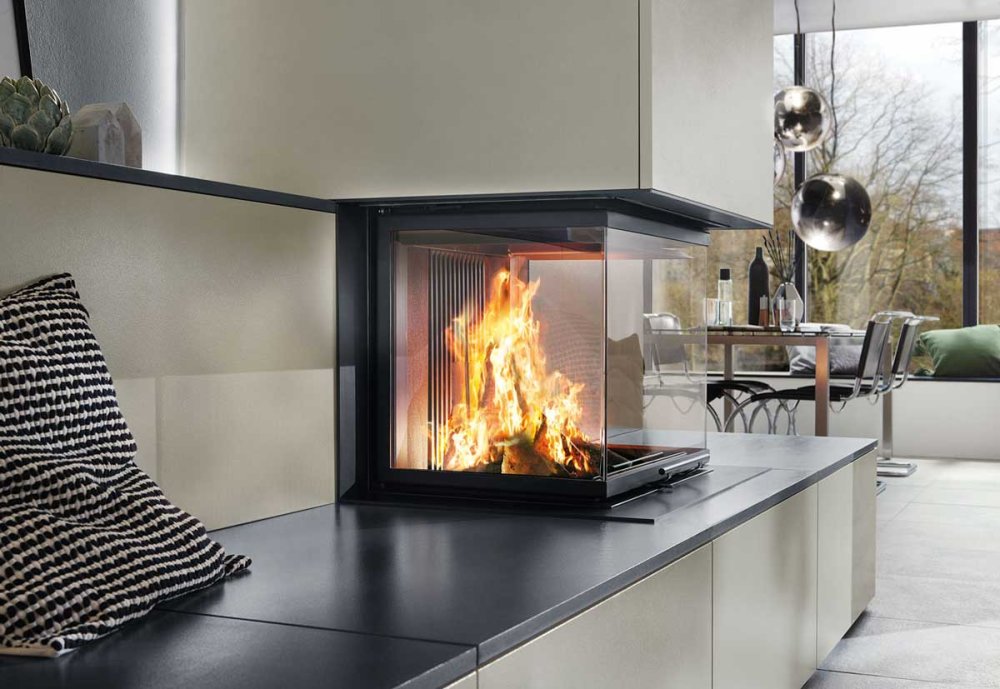

Pure design. Three-sided chimney systems with a lot of fire view - so you build today chic fireplaces that reflect the current zeitgeist in design and design.
description

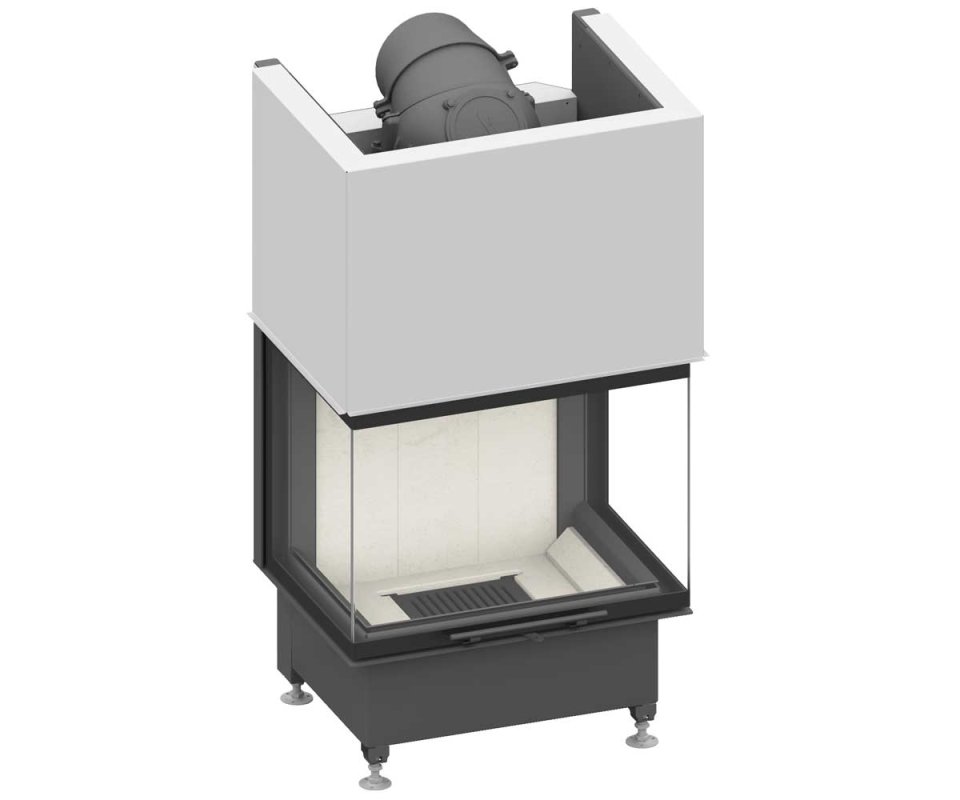

- Fireplace insert 3-sided glass
- 67 (45) 51 - height 51 cm
- 67 (45) 57 - height 57 cm
- Door can be pushed up (tilted for cleaning), not self-closing at the factory (weights for conversion are included)
- Lower disc purging adjustable
- Standard inner lining: chamotte, smooth
- High-quality cast dome, all parts movable, adjustable from 0 ° - 90 °
- Height adjustable easily and quickly
Technical specifications
Nominal heat output 9 kW
Heat output range (according to wood plating quantity) - 3.4 - 9.8 kW
Efficiency> 78%
Insulation thickness (relative to SILCA 250KM) 60 mm
⌀ Supply air line for outside air connection 125 mm
Weight (depending on equipment) 190 - 260 kg
Heat emission through the lens 60%
Convective power 40%
Data for chimney sweep according to DIN EN 13384 (operation closed)
Exhaust gas mass flow 9.5 g / s
Exhaust gas temperature at the nozzle 330 ° C
Feed pressure, min-max. 12-20 Pa
