Brula Masonry Heater Typ D Plus deep

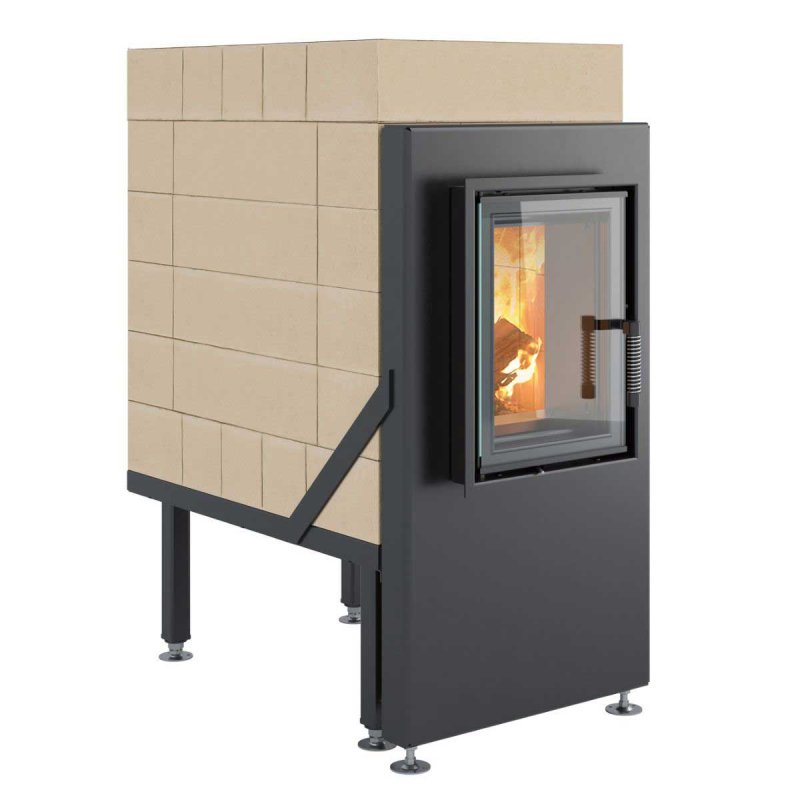

BRULA complete firebox type D plus
- Compact firebox with large storage capacity - Fits space in any room situation
- The complete firebox type D plus incl. Basic oven door GT-A07 Mod. 2018 - Smart Close with FR-Podest D plus

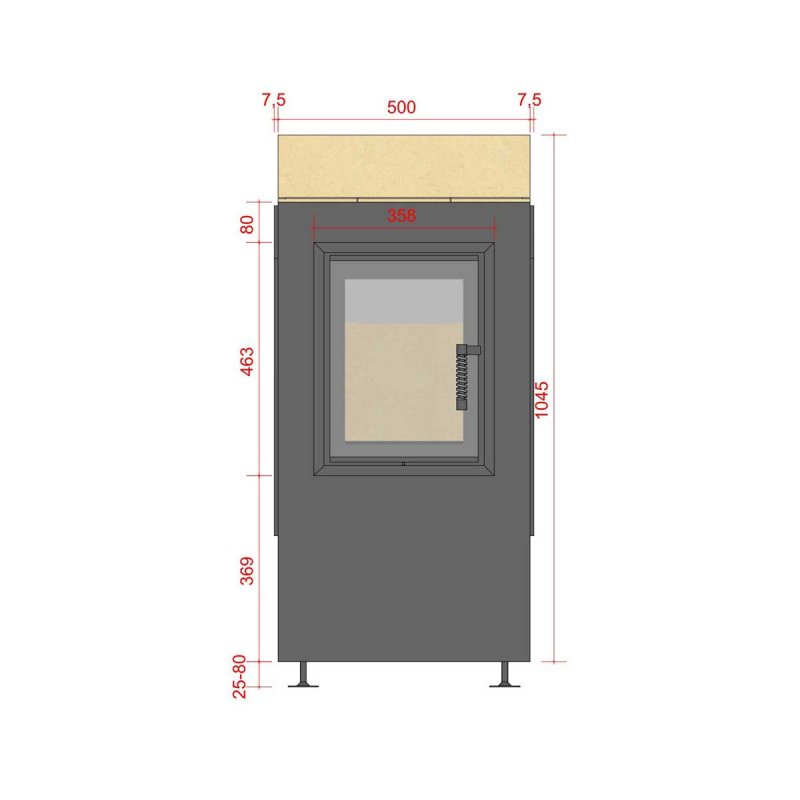

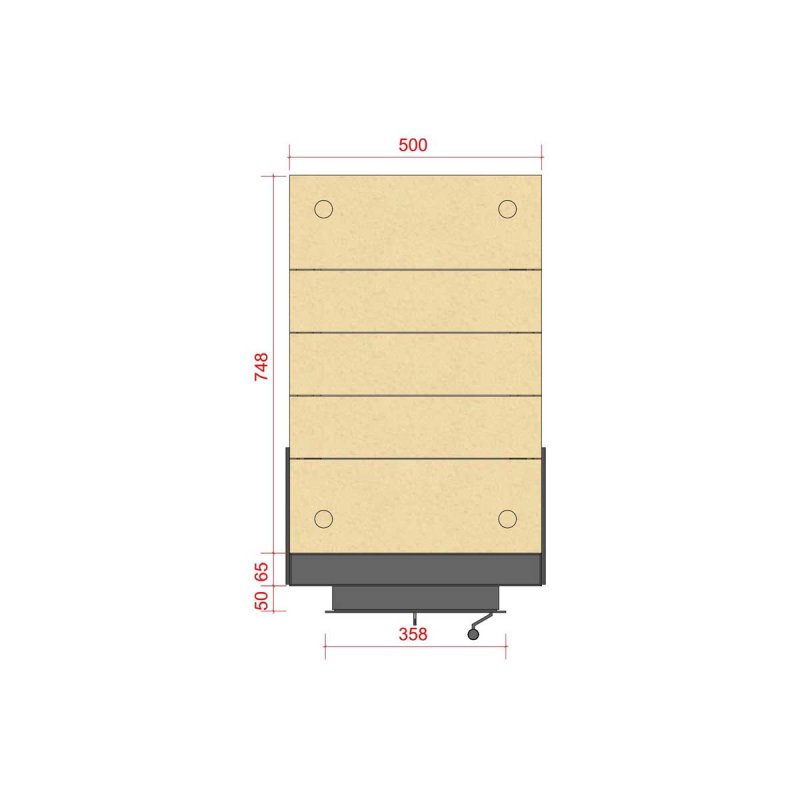

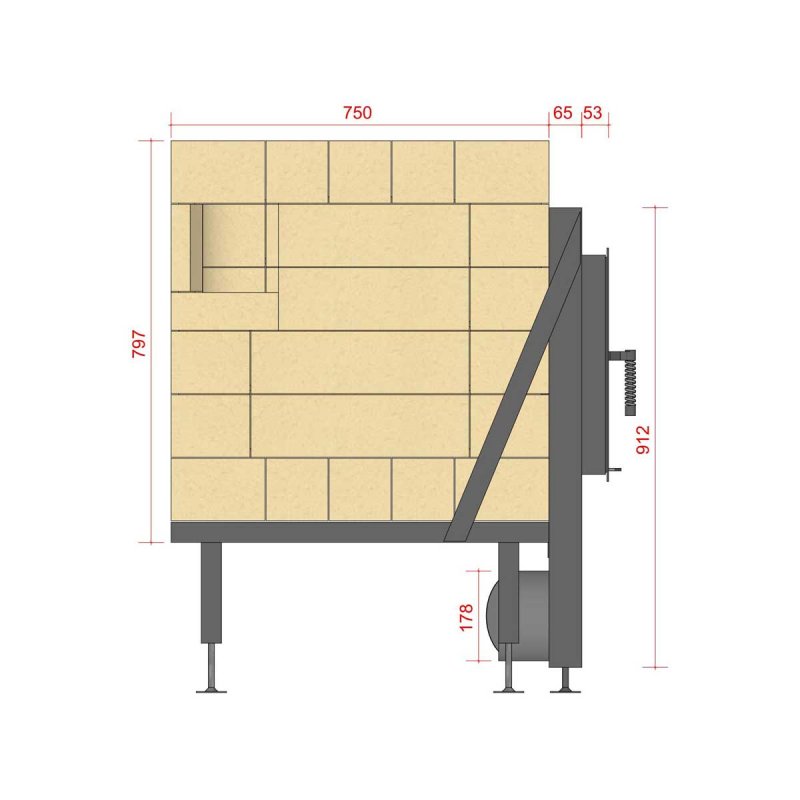

- Width 500 mm, depth 750 mm, height 750 mm
- Weight: 400 kg
- Frame dimensions (W x H) 464 x 363 mm
- VL connection Ø 150 mm, with VL slide, with burnout set, clamp set, insert wedges and BRULA building mortar
- including cutout door opening
Optional: BRULA module cover pull complete modular puller blocks, cast connection pieces, construction mortar, heat storage plate to complete fire room type D plus, cleaning openings either right, left or front (please note when ordering under comments), weight: 269 kg
Technical details
- Total heat output: 13.5 kW
- Heat capacity: 3.2 - 7.7 kW
- Efficiency: 83.50%
- Weight: 400 kg
- Width: 500 mm
- Height: 750 mm
- Depth: 750 mm
- Viewing window: 464 x 363 mm
- BlmSchV: Level 2
- Type: A1
- Exhaust gas temperature: 478 ° C
- Exhaust gas mass flow: 29.19 g / s
- Minimum delivery pressure: 13 Pa
- CO content bez. to 13% O2: <0.1%
- Fuel throughput: 9.5 kg / h
- Satisfied standards: Austria § 15a-B: VG (Austria), LRV 08 (Switzerland), Munich Fuel Ordinance, Regensburg Regulation, Aachen Solid Fuel Ordinance
The basic oven (also called storage oven) stands for a long-lasting and healthy heat output. And that is precisely the advantage of this furnace system. Compared to a hot air system that works according to the convection principle and quasi only heats the air, a basic oven gives its heat slowly and evenly as healthy radiant heat to the room - what especially allergy sufferers appreciate. And this is how it works: When the fire in the combustion chamber has started, the hot gases are drawn through a system of fireclay bricks, which absorb and store the heat.
The traction system is designed so that the hot gases first have to run through the whole oven before they pull off through the chimney. The generated heat is stored by the stove and released again over a long period of time. The radiation heat generated in this way does not heat the air, but only the bodies that it encounters - like a sunbeam.
Made in Germany.
Dispatch conditions
Deliveries are made only within Germany.
-- Clients from other countries can pick up the purchased articles from our store room; or please ask for a transport price. In case of delivery to your country the prices might change due to your local VAT!
Dispatch costs (inclusive of legally applicable VAT)
Deliveries within Germany:
We charge shipping costs on the basis of the order value (product price):
from 1 - 99,99 EUR = 6,90 EUR
Free shipping within Germany from a value of 100 EUR.
If the dispatch involves bulky goods (freight forwarding), we calculate as follows:
from 1 - 99,99 EUR = 6,90 EUR
Free shipping within Germany from a value of 100 EUR.
Bulky goods are marked as such in the item description.
- Service for clients from Switzerland: http://www.swiss-paket.de/filialen.
Delivery periods
Unless any other period is specified in the item description, the product is delivered in Germany within 3 - 50 days, in case of foreign deliveries, within 5 - 50 days after the order confirmation (in case of agreed-upon advance payment, with respect to your payment authorisation).
Please note that deliveries are not made on Sundays and other holidays.
Terms of payment
In case of deliveries within Germany, you have the following payment options:
- Prepayment via transfer with 5% discount
- Payment via credit card by Paypal
- Payment via PayPal
- Payment by invoice (via Paypal Plus)
In case of deliveries to a foreign country, you have the following payment options:
- Prepayment via transfer with 5% discount
- Payment via PayPal
- Payment via credit card by Paypal
Further details on payment
We reserve the right to make the delivery only against prepayment via transfer in isolated cases.
As long as you make the prepayment , we will grant you 5 % early payment discount on the gross product value of the order.
If payment is made using a credit card, your credit card account is debited in conjunction with the conclusion of the contract.
In case of questions, please contact us at the contact details mentioned in the Legal Notice.
All clients from these countries or other countries can pick up the articles here in Germany on request.
* Clients from NOT-EU-Countries: please ask for delivery possibilities
We deliver with TransNatur, HELLMANN Logistics, Dachser or DHL from monday to friday.
.
Manufacturer: BRULA GmbH
Weidacher Straße 17
87471 Durach, Germany
Tel.: +49 (0) 831 56407-0
www.brula.de
Protective measures/safety instructions for installation (wood fires and stoves)
The following protective measures and safety instructions must be strictly observed:
- Fireplaces may only be installed in rooms and in places where the location, structural circumstances and type of use do not present any hazards.
- No modifications may be made to the appliance.
- Only use the approved system for exhaust gas removal/combustion air supply.
- Work on the stove system Installation, commissioning, maintenance and servicing work on the appliance may only be carried out by an authorized specialist company.
as the safety and functionality of the system depend on proper installation. - The installation must be carried out by a registered specialist company, as the safety and functionality of the system depend on proper installation. You must observe the applicable trade regulations and building regulations.
- Fireplaces must be installed in an operationally safe and fireproof manner so that hazards and unreasonable nuisances cannot occur. They must be fit for purpose for a reasonable period of time.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
