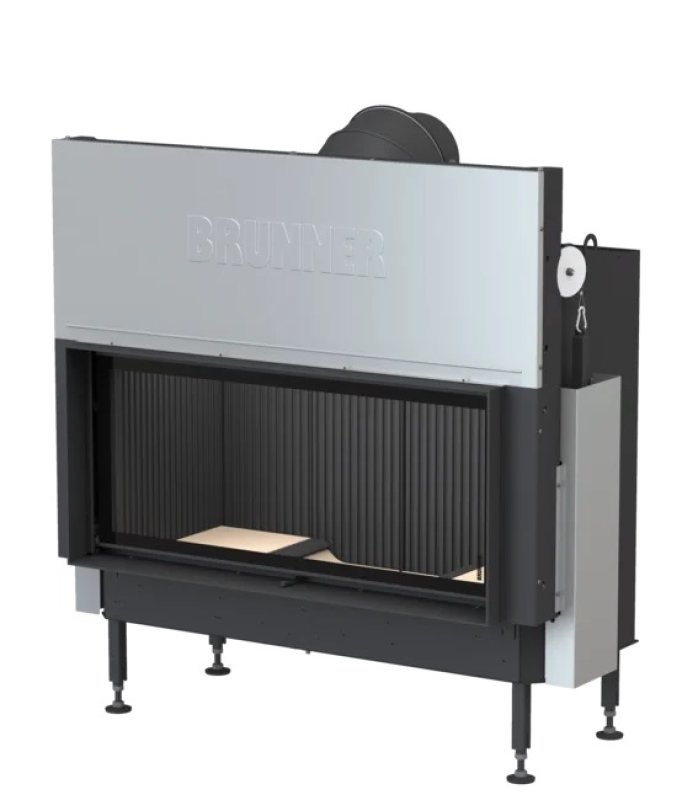

Brunner BKH 5.0 Flach 42-98 ST green
Fireplaces marked "green" have a unique and patent protected bottom firing in the industry. The future for perfect flames and the lowest emissions. In the standard, all current limit values are well below.
Green and Green+ is the new standard for BRUNNER fireplaces. With the right fuel and the right operation, verifiable emissions can be achieved at any time. We don't need "laboratory operations" - at Brunner, anyone who wants to can go green at home.
In the version with an integrated catalytic converter and a burn-off control, the green+ quality level can be achieved.
The combustion chamber geometry is new and patented. The BRUNNER "trough firing" does not require a grate or ash box. Hidden from direct view, the combustion air flows sideways into the combustion chamber cavity (primary air) and as windshield scavenging air (secondary air) from the upper door ridge area into the combustion chamber.
Depending on the combustion situation, the correct ratio of primary and secondary air determined on the test bench is selected via the front control element.
A secret why BRUNNER fireplaces burn so cleanly!
Set components:
- BKH 5.0 Flat 42-98 ST GK FR, easy-lift
- Frame black

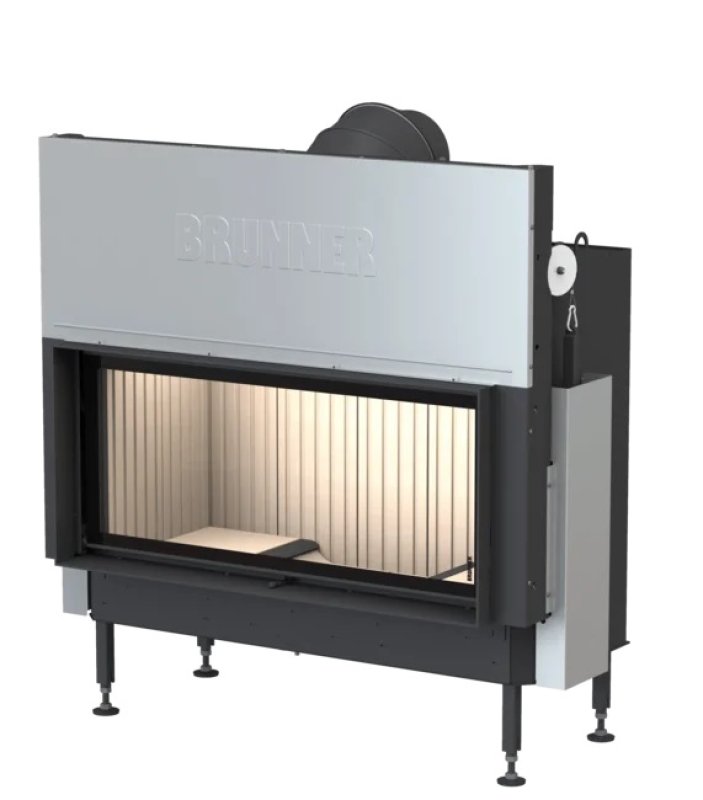

- Combustion chamber lining chamotte (FR)
- Hood variant: Cast iron hood Ø200 mm
- Optional hoods: Cast iron hood ⌀ 200 mm with 4 heat exchange rings and MAS 440 double-walled top-mounted storage tank Ø180 mm
Optional accessories: EAS, coated glass ceramic (GKB), cast combustion chamber lining (FR/cast), catalytic converter module BKH 5.0 for green+, air connection box ⌀ 125 mm (for the EAS version included), air connection box ⌀ 150 mm, rear wall heat shields, rear wall heat shields with 1 side wall, rear wall heat shields with 2 side walls
Description:
Front fireplace insert, swiveling and elevating door, front door frame width 98cm, door height 42cm.
11 kW nominal heat output
Primary, secondary and tertiary air deflection for flue gas deflection for efficient combustion
Heating gas collector with integrated heating gas deflection (baffle plate) to optimize combustion, deep bed of embers without grate
Viewing pane made of ceramized glass, which stays clean longer thanks to permanent pane rinsing
Door sliding mechanism ''easy lift'' for devices that can be pushed up: Door sliding mechanism with sophisticated cable pulley technology
Detailed operating and assembly instructions are included with the device.
Weight: approx. 309 kg
Requirement/Limits:
EU / Germany and Ecodesign / 1. BImSchV (Level 2)
