Brunner BKH 5.0 Tunnel 50-122 ST-KT green
Fireplaces marked "green" have a unique and patent protected bottom firing in the industry. The future for perfect flames and the lowest emissions. In the standard, all current limit values are well below.
Green and Green+ is the new standard for BRUNNER fireplaces. With the right fuel and the right operation, verifiable emissions can be achieved at any time. We don't need "laboratory operations" - at Brunner, anyone who wants to can go green at home.
In the version with an integrated catalytic converter and a burn-off control, the green+ quality level can be achieved.
The combustion chamber geometry is new and patented. The BRUNNER "trough firing" does not require a grate or ash box. Hidden from direct view, the combustion air flows sideways into the combustion chamber cavity (primary air) and as windshield scavenging air (secondary air) from the upper door ridge area into the combustion chamber.
Depending on the combustion situation, the correct ratio of primary and secondary air determined on the test bench is selected via the front control element.
A secret why BRUNNER fireplaces burn so cleanly!

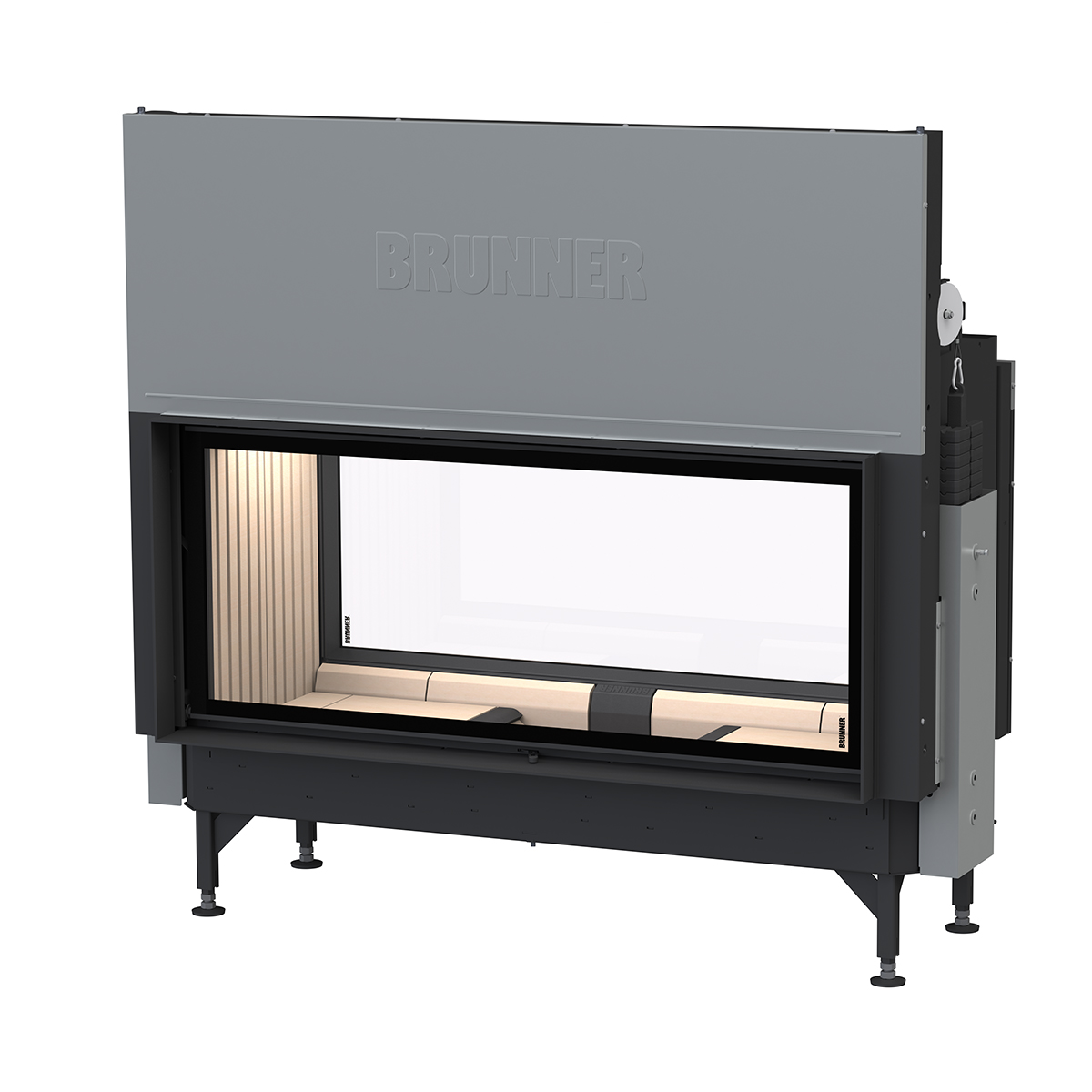

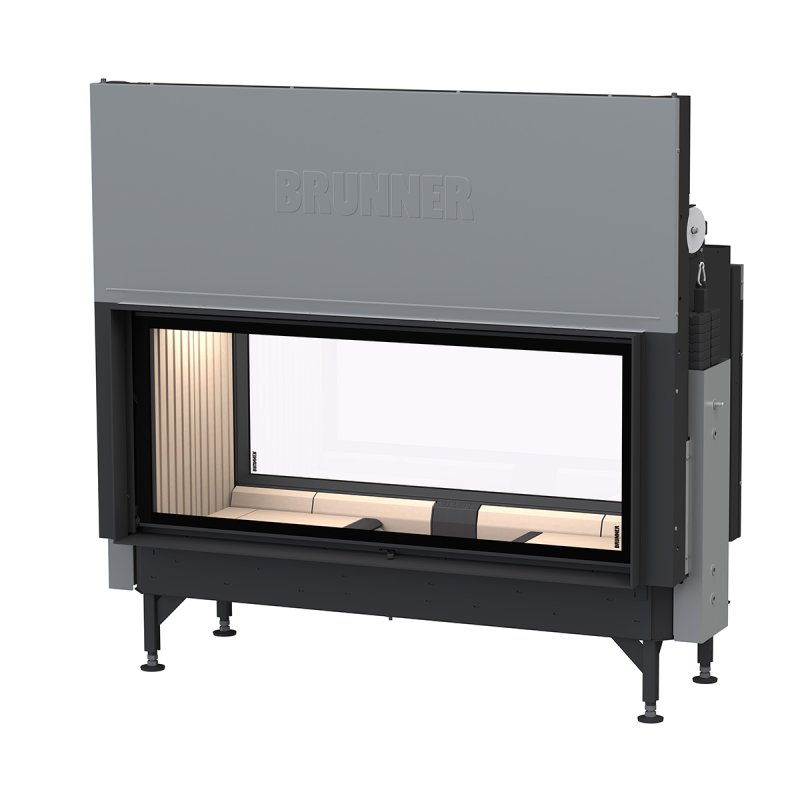

Description of the tunnel fireplace BKH Tunnel 50-122
- Tunnel fireplace insert
- Output: 14.5 kW
- Filling capacity (kg): 5-6.5 kg
- Door format height x width x depth: 50 x 122 cm
- Combustion chamber depth: 35 cm
- Door variant: 1 sliding door and 1 revolving door
- Combustion chamber design: fireclay FR, optional cast iron plate FR
- Heating gas collector with integrated heating gas deflection (baffle plate) to optimize combustion, deep ember bed without rust
- Viewing window made of ceramicized glass that stays clean longer thanks to permanent window flushing
- Mounting edge black or frame black
- Hood variant: Connection adapter ⌀ 300 - 250 mm
- Energy label: A+
- Log length: 33 - 50 cm
- Weight: approx. 411 KG
Optional hoods: Connection adapter ⌀ 300 - 250 mm with 2 cast iron heat exchange rings, Connection adapter ⌀ 300 - 250 mm with 4 cast iron heat exchange rings
optional accessories: EOS easy A, glass ceramic coated, cast iron combustion chamber lining, catalyst module BKH 5.0 for green+, air connection box ⌀ 125 mm (included in EAS version), air connection box ⌀ 150 mm, heat protection plates rear wall, heat protection plates rear wall with 1 side wall, heat protection plates rear wall with 2 side walls
Requirements/limit values:
EU / Germany: Ecodesign / 1st BImSchV (Level 2)
