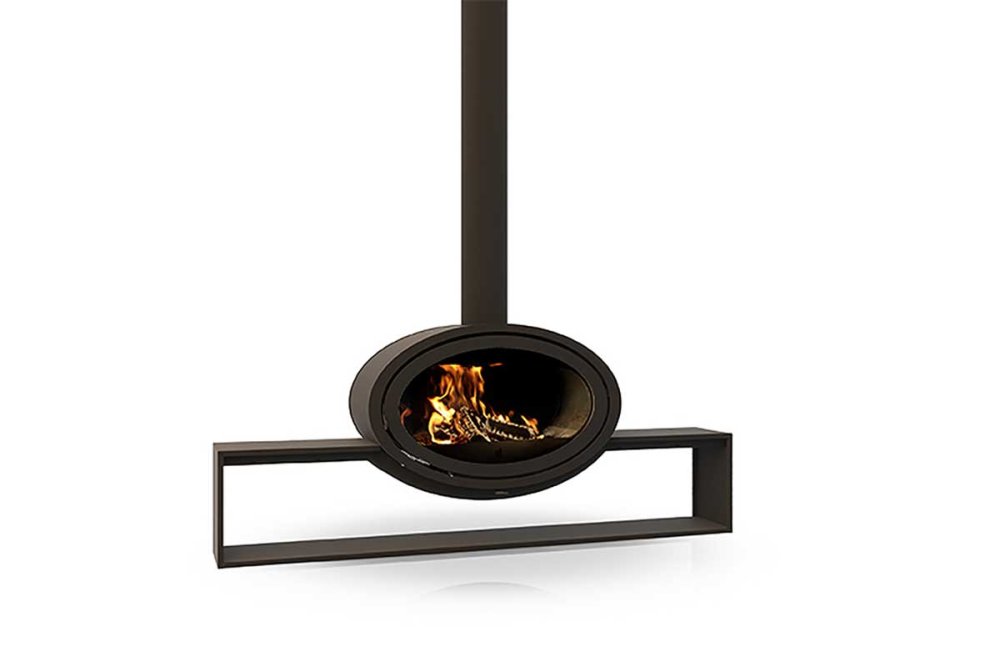

Dik Geurts - OVAL FRONT, PLATEAU
Designed and skilfully manufactured with simplicity, efficiency and beauty in mind: That's the Oval from Dik Geurts.
Its unique oval design not only makes it a real eye-catcher, but its shape also guarantees a great play of flames. Flames that can be controlled with a unique air slide that is only available from Dik Geurts.
The Oval Front, Fixed, is a beautiful fire. Its unique oval shape gives you a great view of the large flame picture. The air slider has three different settings to easily control the intensity of the fire. The dark anthracite vermiculite interior ensures optimal and clean combustion. With the outdoor air option, it is a very suitable option for well-insulated homes.
Special features:
- Its unique round design not only makes it a real eye-catcher, but its shape also guarantees a great play of flames. Flames that can be controlled with a unique air slide that is only available from Dik Geurts.

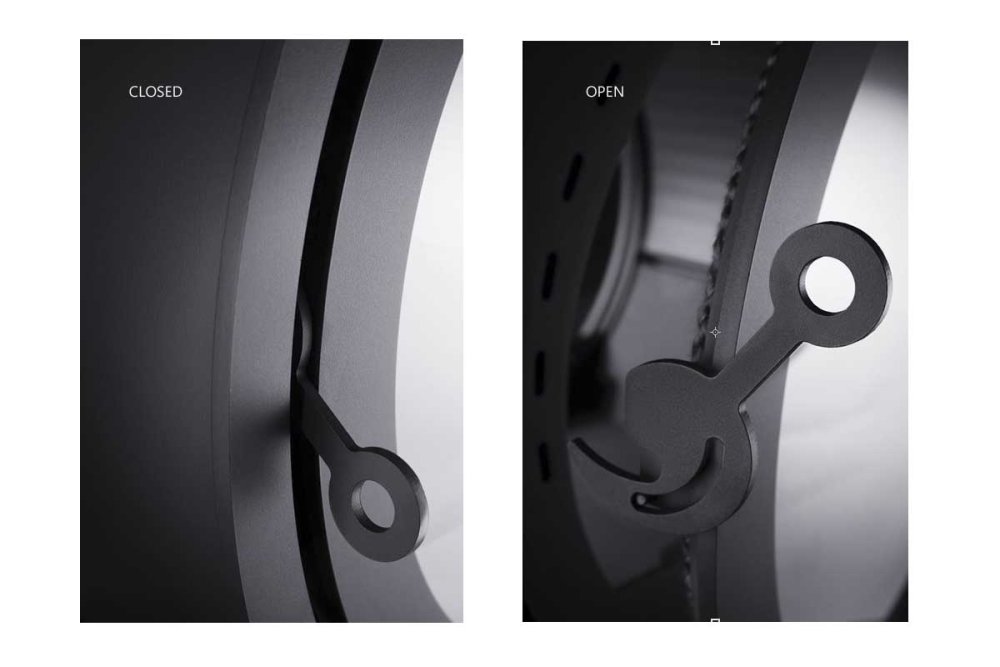

- A single air slide with three positions for easy operation of your fireplace. That is unique, that is typically Dik Geurts. The primary ventilation for lighting, the secondary ventilation for burning unburnt gases and the ventilation of the glass for clean glass at all times.
- The inner lining of the Oval is made of moulded vermiculite, which has very good heat reflection properties. A deliberate choice, as this reflection ensures faster heating of the smoke channel and more heat in the fire. The result: a beautiful, higher efficiency and clean combustion that fulfils the strictest emission requirements.
- In addition to a heat-reflecting vermiculite inner lining, the Oval, like every Dik Geurts fireplace, offers the option of an outside air connection. This means that no air is extracted from the living room. Efficient, clean and extremely suitable for well-insulated houses (not room-sealed!).
Technical data
- Brand: Dik Geurts
- Energy efficiency class:
- Nominal heat output (kW): 7.9
- Net output min.-max. (kW): 6.0-10.0
- Efficiency in (%): 75.9
- CO emission (%-13% O2): <0.1
- Dust (mg/Nm3-13% O2): <40
- OGC/CxHy (mg/Nm3-13% O2): <110
- NOx emission (mg/Nm3-13 % O2): <200
- Flue gas temperature °C:
- Model: Suspended
- Fire view: Front
- Shape: Oval
- Fuel: Wood
- Combustion system: Closed combustion, room air dependent
- Glass version: Standard glass
- Door design: Hinged door
- Operation: Manual
- Colours: Dark anthracite
- Material: Steel
- Interior: Vermiculite dark anthracite
- Depth (mm): 380
- Fire viewing width (mm): 748
- Fire viewing height (mm): 424
- Weight (kg): 160
- Top smoke outlet (mm): 150
- Fresh air connection at bottom (mm): 80
- Certifications: EN13240, Flamme Verte, BlmSchV, Defra, EcoDesign
- Plateau, L: 2000 x W: 300 x H: 400 mm
- Flue gas connection Conical flue gas outlet Ø 150 mm
- Raised ash sill
- Outside air connection set
- Custom made plateau
Fireplaces with outside air connection
Nowadays, houses are increasingly better insulated and ventilation systems are often installed to ensure that sufficient fresh air still enters the house. It is therefore important to consider the supply air for combustion when choosing a fireplace. To ensure that the supply air comes from outside, it is important that you equip your stove with an outside air connection.
EA/RLA stoves (‘External Air’), Standard
• For use with neutral or positive pressure
• With the EA version, the oxygen for combustion can come almost entirely from outside
• Possible for all wood-burning stoves
RS/RLU stoves (‘Room Sealed’)
• Are used in negative pressure situations in the living room
• The oxygen for combustion comes entirely from outside
• Included in a large number of fireplaces
Modern homes choose RS/RLURS fireplaces are often installed in modern passive houses. These fireplaces are tested for a particularly high level of tightness and are provided with a certificate. Ideally suited for a balanced indoor climate and optimum heating enjoyment.
The RS/RLU version is not DIBt-certified.
Dispatch conditions
Deliveries are made only within Germany.
-- Clients from other countries can pick up the purchased articles from our store room; or please ask for a transport price. In case of delivery to your country the prices might change due to your local VAT!
Dispatch costs (inclusive of legally applicable VAT)
Deliveries within Germany:
We charge shipping costs on the basis of the order value (product price):
from 1 - 99,99 EUR = 6,90 EUR
Free shipping within Germany from a value of 100 EUR.
If the dispatch involves bulky goods (freight forwarding), we calculate as follows:
from 1 - 99,99 EUR = 6,90 EUR
Free shipping within Germany from a value of 100 EUR.
Bulky goods are marked as such in the item description.
- Service for clients from Switzerland: http://www.swiss-paket.de/filialen.
Delivery periods
Unless any other period is specified in the item description, the product is delivered in Germany within 3 - 50 days, in case of foreign deliveries, within 5 - 50 days after the order confirmation (in case of agreed-upon advance payment, with respect to your payment authorisation).
Please note that deliveries are not made on Sundays and other holidays.
Terms of payment
In case of deliveries within Germany, you have the following payment options:
- Prepayment via transfer with 5% discount
- Payment via credit card by Paypal
- Payment via PayPal
- Payment by invoice (via Paypal Plus)
In case of deliveries to a foreign country, you have the following payment options:
- Prepayment via transfer with 5% discount
- Payment via PayPal
- Payment via credit card by Paypal
Further details on payment
We reserve the right to make the delivery only against prepayment via transfer in isolated cases.
As long as you make the prepayment , we will grant you 5 % early payment discount on the gross product value of the order.
If payment is made using a credit card, your credit card account is debited in conjunction with the conclusion of the contract.
In case of questions, please contact us at the contact details mentioned in the Legal Notice.
All clients from these countries or other countries can pick up the articles here in Germany on request.
* Clients from NOT-EU-Countries: please ask for delivery possibilities
We deliver with TransNatur, HELLMANN Logistics, Dachser or DHL from monday to friday.
.
Manufacturer:
DRU Verwarming BV (Dik Geurts)
PO Box 1021
6921 RW Duiven
The Netherlands
H: www.drufire.com
T: +31 (0)26 3195319
Protective measures/safety instructions for installation (wood fires and stoves)
The following protective measures and safety instructions must be strictly observed:
- Fireplaces may only be installed in rooms and in places where the location, structural circumstances and type of use do not present any hazards.
- No modifications may be made to the appliance.
- Only use the approved system for exhaust gas removal/combustion air supply.
- Work on the stove system Installation, commissioning, maintenance and servicing work on the appliance may only be carried out by an authorized specialist company.
as the safety and functionality of the system depend on proper installation. - The installation must be carried out by a registered specialist company, as the safety and functionality of the system depend on proper installation. You must observe the applicable trade regulations and building regulations.
- Fireplaces must be installed in an operationally safe and fireproof manner so that hazards and unreasonable nuisances cannot occur. They must be fit for purpose for a reasonable period of time.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
