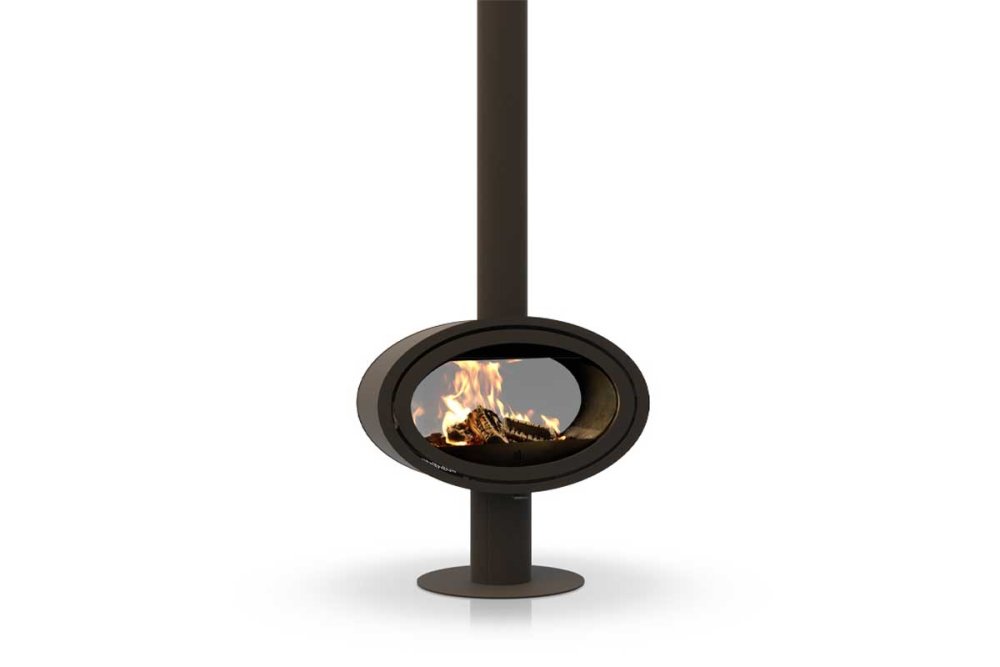

Stove OVAL TUNNEL BASE from Dik Geurts

Dik Geurts - OVAL TUNNEL BASE

Designed and skilfully manufactured with simplicity, efficiency and beauty in mind: That's the Oval from Dik Geurts.
Its unique oval design not only makes it a real eye-catcher, but its shape also guarantees a great play of flames. Flames that can be controlled with a unique air slide that is only available from Dik Geurts.
The Oval Front, Fixed, is a beautiful fire. Its unique oval shape gives you a great view of the large flame picture. The air slider has three different settings to easily control the intensity of the fire. The dark anthracite vermiculite interior ensures optimal and clean combustion. With the outdoor air option, it is a very suitable option for well-insulated homes.

Special features:

• Its unique round design not only makes it a real eye-catcher, but its shape also guarantees a great play of flames. Flames that can be controlled with a unique air slide that is only available from Dik Geurts.

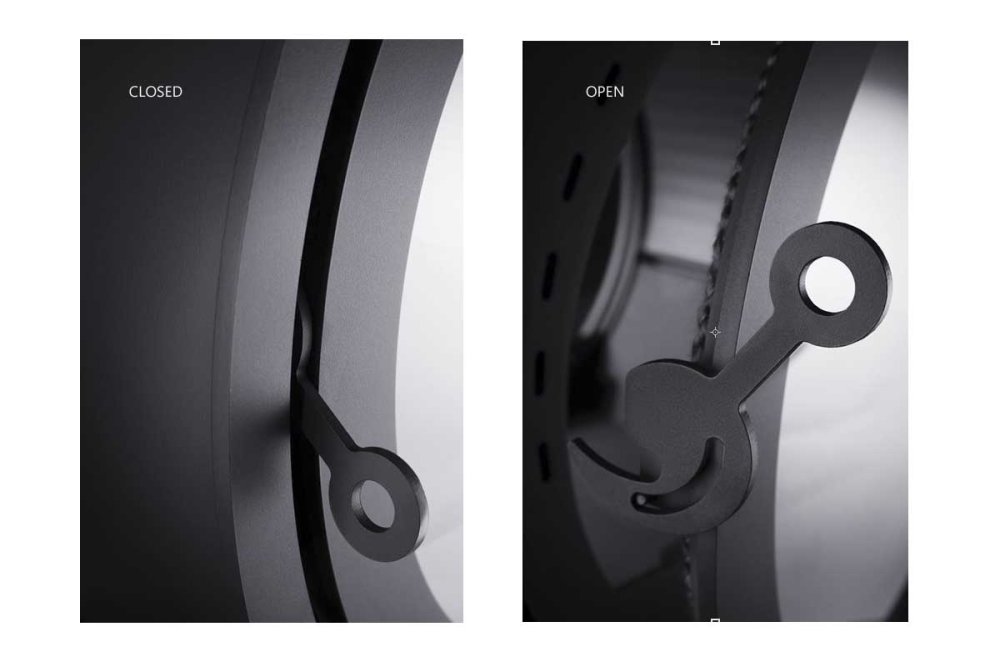

• A single air slide with three positions for easy operation of your fireplace. That is unique, that is typically Dik Geurts. The primary ventilation for lighting, the secondary ventilation for burning unburnt gases and the ventilation of the glass for clean glass at all times.
• The inner lining of the Oval is made of moulded vermiculite, which has very good heat reflection properties. A deliberate choice, as this reflection ensures faster heating of the smoke channel and more heat in the fire. The result: a beautiful, higher efficiency and clean combustion that fulfils the strictest emission requirements.
• In addition to a heat-reflecting vermiculite inner lining, the Oval, like every Dik Geurts fireplace, offers the option of an outside air connection. This means that no air is extracted from the living room. Efficient, clean and extremely suitable for well-insulated houses (not room-sealed!).

Technical data

• Brand: Dik Geurts
• Energy efficiency class:
• Nominal heat output (kW): 11.6
• Net output min.-max. (kW): 9.0-12.0
• Efficiency in (%): 81.6
• CO emission (%-13% O2): <0.1
• Dust (mg/Nm3-13% O2): <40
• OGC/CxHy (mg/Nm3-13% O2): <110
• NOx emission (mg/Nm3-13 % O2): <200
• Flue gas temperature °C:
• Model: Suspended
• Fire view: Front
• Shape: Oval
• Fuel: Wood
• Combustion system: Closed combustion, room air dependent
• Glass version: Heat-reflecting infrared glass
• Door design: Hinged door
• Operation: Manual
• Colours: Dark anthracite
• Material: Steel
• Interior: Vermiculite dark anthracite
• Depth (mm): 380
• Fire viewing width (mm): 748
• Fire viewing height (mm): 424
• Weight (kg): 130
• Top smoke outlet (mm): 150
• Fresh air connection at bottom (mm): 80
• Certifications: EN13240, Flamme Verte, BlmSchV, Defra, EcoDesign

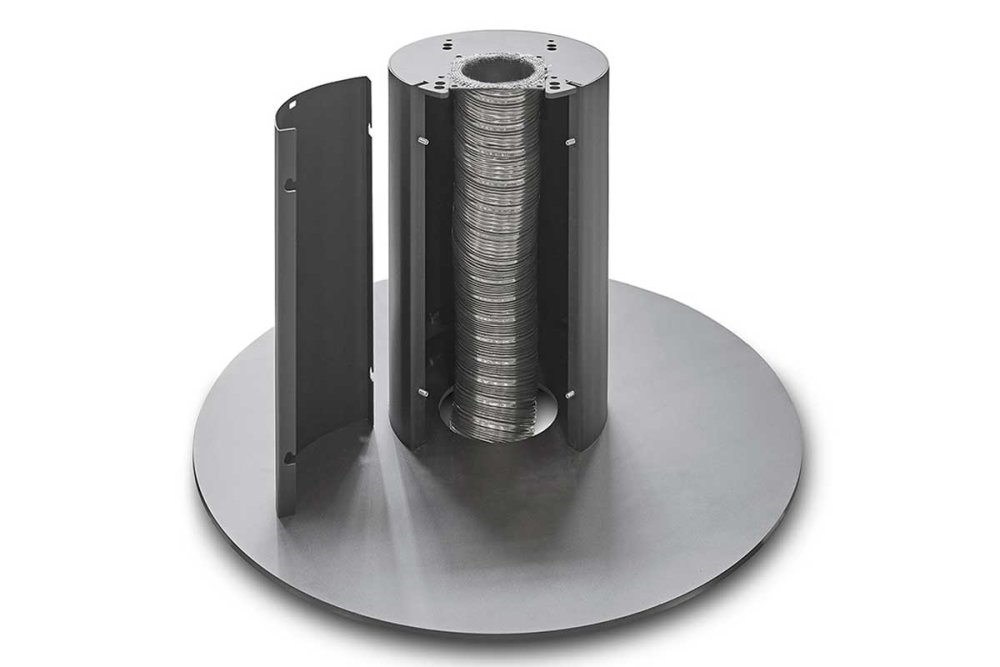

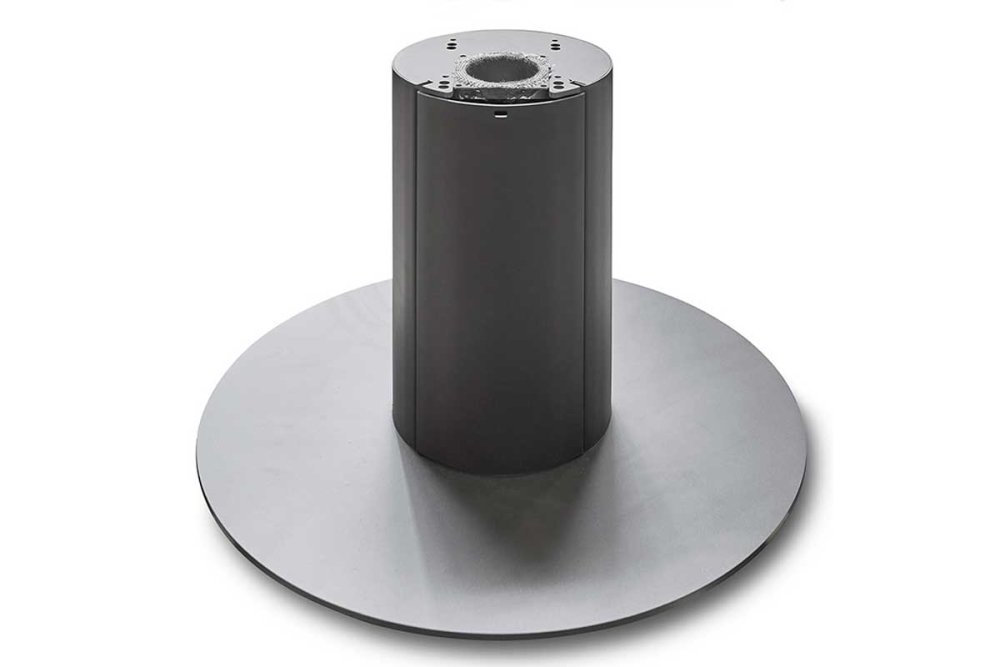

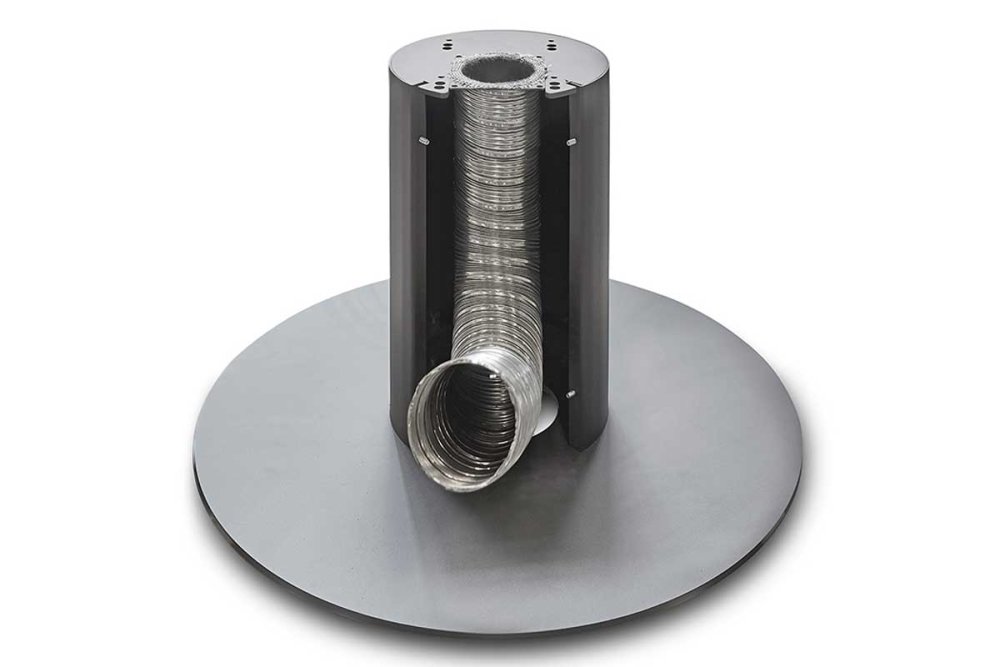

• Base, height: 355 mm, Ø 600 mm. Separate combustion air connection at the bottom and rear possible
• Flue gas connection Conical flue gas outlet Ø 150 mm

Fireplaces with outside air connection
Nowadays, houses are increasingly better insulated and ventilation systems are often installed to ensure that sufficient fresh air still enters the house. It is therefore important to consider the supply air for combustion when choosing a fireplace. To ensure that the supply air comes from outside, it is important that you equip your stove with an outside air connection.

EA/RLA stoves (‘External Air’), Standard
• For use with neutral or positive pressure
• With the EA version, the oxygen for combustion can come almost entirely from outside
• Possible for all wood-burning stoves

RS/RLU stoves (‘Room Sealed’)
• Are used in negative pressure situations in the living room
• The oxygen for combustion comes entirely from outside
• Included in a large number of fireplaces

Modern homes choose RS/RLURS fireplaces are often installed in modern passive houses. These fireplaces are tested for a particularly high level of tightness and are provided with a certificate. Ideally suited for a balanced indoor climate and optimum heating enjoyment.

The RS/RLU version is not DIBt-certified.
