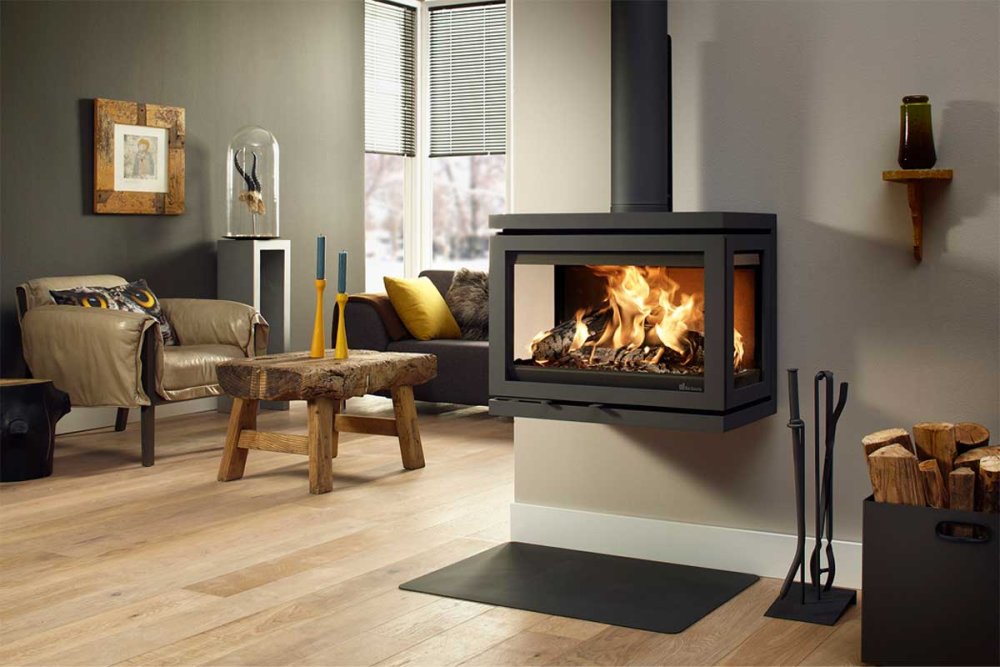

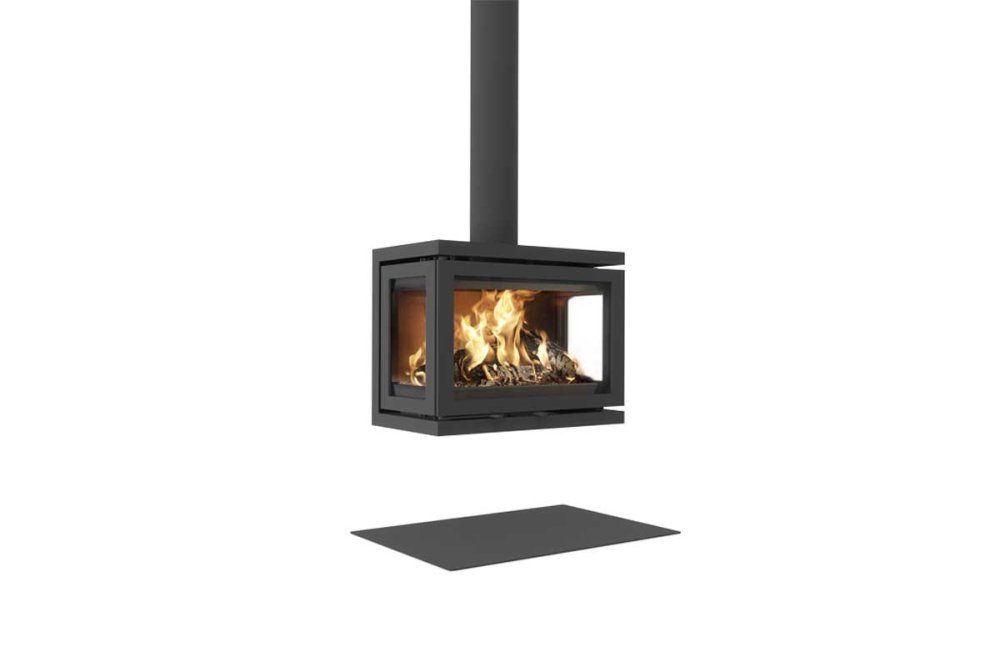

Dik Geurts - VIDAR TRIPLE MEDIUM WALL
High efficiency, a beautiful view of the flames and simple operation via a unique air slide. The Vidar Triple fireplaces offer many advantages and are very easy to operate. The fireplace also offers the option of an outside air connection, which makes it perfect for well-insulated homes.
Vidar stoves are equipped with heat-reflecting infrared glass, which ensures a remarkably high efficiency of 88% and clean panes during firing.
Combine this with a large pane and guarantee a great view of the fire.
The Vidar Triple fires are available in three sizes: Large, Medium and Small.
Special features:
- Its unique round design not only makes it a real eye-catcher, but its shape also guarantees a great play of flames. Flames that can be controlled with a unique air slide that is only available from Dik Geurts.
- A single air slide with three positions for easy operation of your fireplace. That is unique, that is typically Dik Geurts. The primary ventilation for lighting, the secondary ventilation for burning unburnt gases and the ventilation of the glass for clean glass at all times.
- The inner lining of the Vidar is made of moulded vermiculite, which has very good heat reflection properties. A deliberate choice, as this reflection ensures faster heating of the smoke channel and more heat in the fire. The result: a beautiful, higher efficiency and clean combustion that fulfils the strictest emission requirements.
- In addition to a heat-reflecting vermiculite inner lining, the Vidar, like every Dik Geurts fireplace, offers the option of an outside air connection. This means that no air is extracted from the living room. Efficient, clean and extremely suitable for well-insulated houses (not room-sealed!).
Technical data
- Brand: Dik Geurts
- Energy efficiency class:
- Nominal heat output (kW): 7.1
- Net output min.-max. (kW): 4.0-9.0
- Efficiency in (%): 76.3
- CO emission (%-13% O2): <0.1
- Dust (mg/Nm3-13% O2): <40
- OGC/CxHy (mg/Nm3-13% O2): <90
- NOx emission (mg/Nm3-13 % O2): <200
- Flue gas temperature °C:
- Model: Wall mounted
- Fire view: 3 sided
- Shape: Horizontal
- Fuel: Wood
- Combustion system: Closed combustion, room air dependent
- Glass version: Infrared glass
- Door design: Hinged door
- Operation: Manual
- Colours: Dark anthracite
- Material: Steel
- Interior: Vermiculite dark anthracite
- Depth (mm): 410
- Fire viewing width (mm): 562
- Fire viewing height (mm): 345
- Weight (kg): 130
- Top smoke outlet (mm): 150
- Fresh air connection at back/bottom (mm): 80
- Certifications: EN13240, Flamme Verte, BlmSchV, Defra, EcoDesign
- Wall mounting set
- Flue gas connection Conical flue gas outlet Ø 150 mm
- Raised ash sill
- Outside air connection set
Fireplaces with outside air connection
Nowadays, houses are increasingly better insulated and ventilation systems are often installed to ensure that sufficient fresh air still enters the house. It is therefore important to consider the supply air for combustion when choosing a fireplace. To ensure that the supply air comes from outside, it is important that you equip your stove with an outside air connection.
EA/RLA stoves (‘External Air’), Standard
• For use with neutral or positive pressure
• With the EA version, the oxygen for combustion can come almost entirely from outside
• Possible for all wood-burning stoves
RS/RLU stoves (‘Room Sealed’)
• Are used in negative pressure situations in the living room
• The oxygen for combustion comes entirely from outside
• Included in a large number of fireplaces
Modern homes choose RS/RLURS fireplaces are often installed in modern passive houses. These fireplaces are tested for a particularly high level of tightness and are provided with a certificate. Ideally suited for a balanced indoor climate and optimum heating enjoyment.
The RS/RLU version is not DIBt-certified.
