Spartherm Stove PASSO L RLU
Spartherm Stove PASSO L RLU
INNOVATIVE TECHNOLOGY IN A TIMELESS DESIGN: independant from room air!A crackling fire attracts attention and invites you to relax in front of the fireplace. Anyone who wants to experience a play of flames in an exclusive style can be inspired by the impressive variety of extraordinary LIVING FIRE stoves from Spartherm. Manufactured in Germany using high-quality, select materials, the latest models combine innovative stove technology and pioneering design in harmonious perfection. To make the fire experience even more personal, numerous modifications have been developed to customise each stove according to your own requirements. Numerous LIVING FIRE models also impress with the so-called ‘S-Thermatik NEO basic’ combustion control system, which utilises the fuel with maximum efficiency in the spirit of sustainability. The optional heat storage elements provide even more cosy warmth and a feel-good ambience in the glow of the fire.

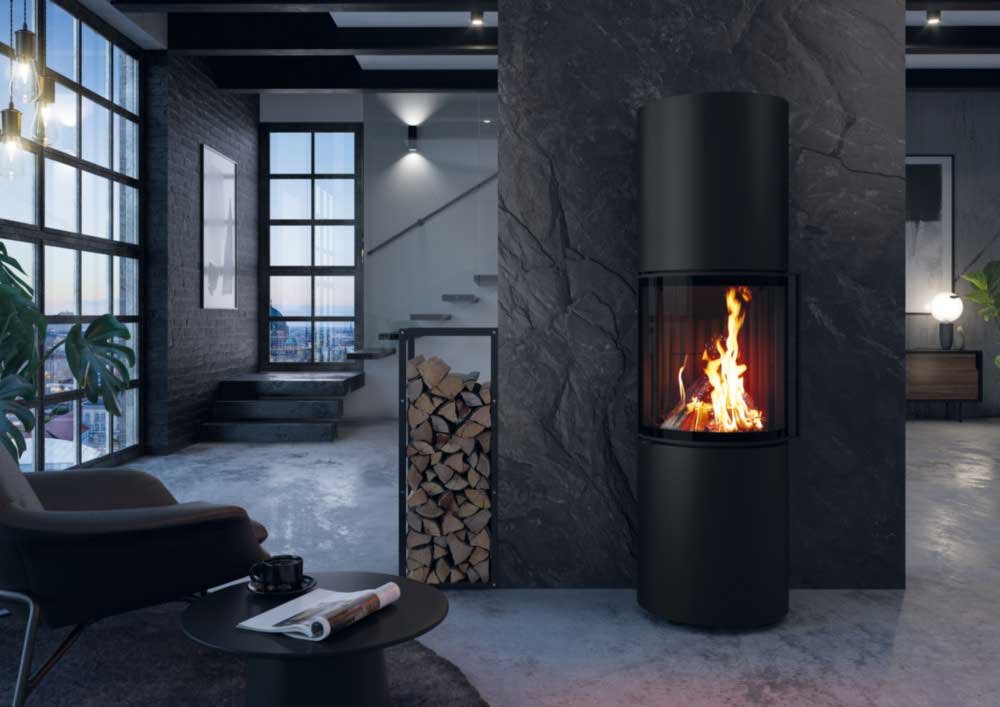

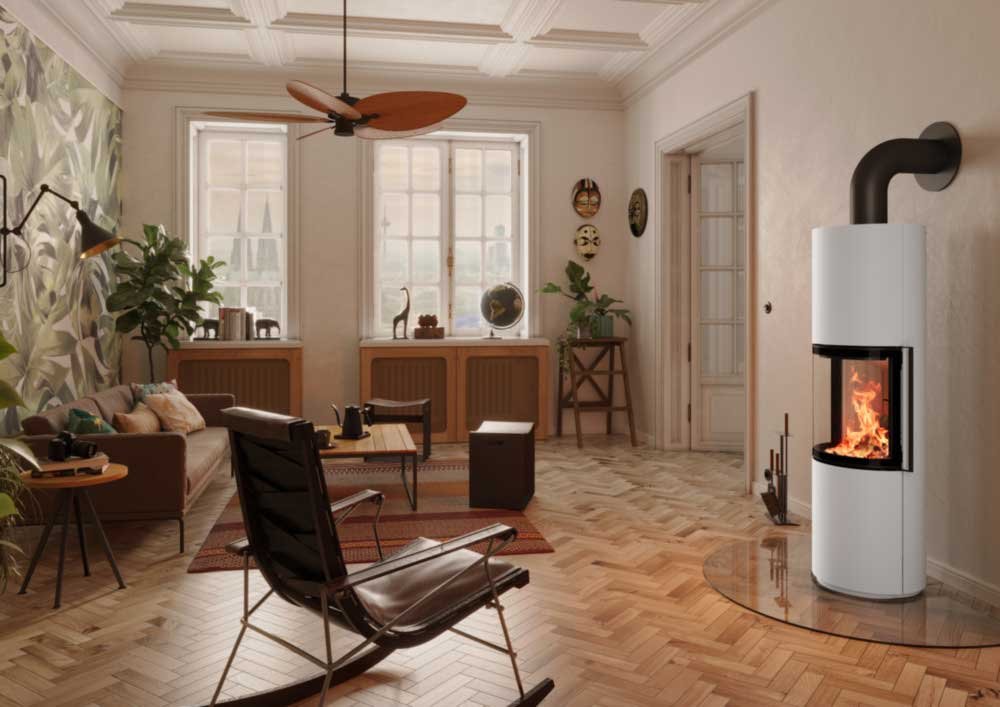

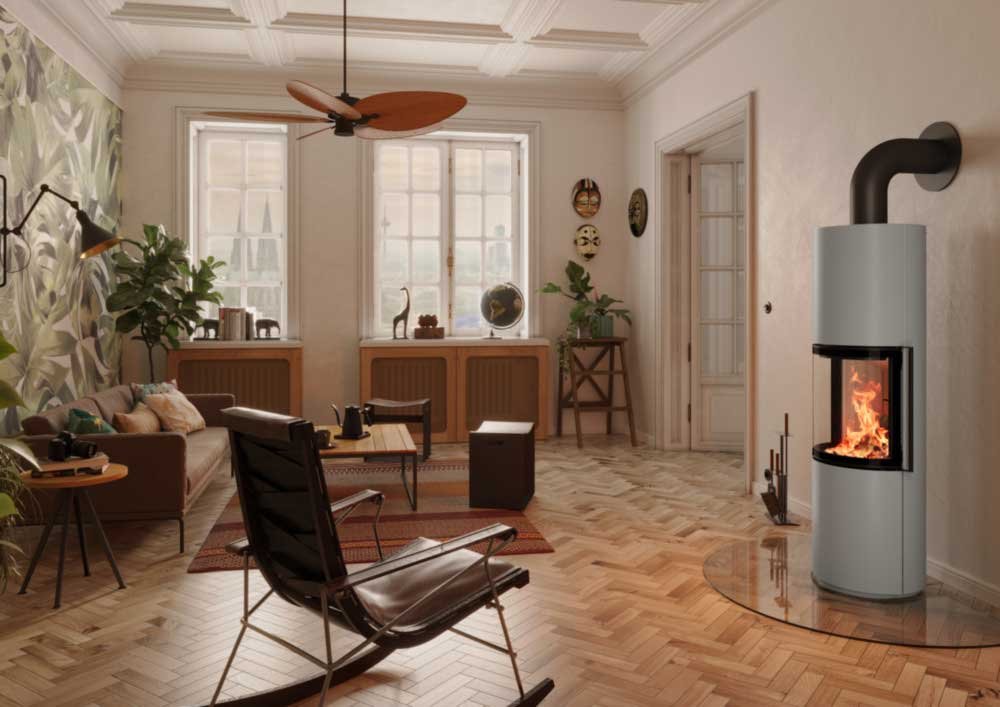

The round shape is what makes the Passo so charming. Clear lines and a no-frills design allow this wood-burning stove to harmonise with a wide variety of furnishing concepts - discreet and unagitated. At the same time, the Passo certainly has a striking appearance, but as a slender column it is also elegant and not too dominant.
Technical Data
- Manufacturer: SPARTHERM
- Energy efficiency class : A
- Nominal heat output (closed) kW: 6.1
- Heat output range kW: 4.5 - 7.9
- Efficiency % : 80
- Fuel: Logs
- Combustion system: Closed combustion, independent from room air
- Glass version: Standard glass, 1-piece
- Door design: Hinged door
- Flue pipe connection diameter mm: 150
- Flue pipe connection top/rear: yes/yes
- Supply air connection: yes 100mm
- Weight kg: 165
- Material: Steel body
- Combustion chamber lining: heat-resistant fireclay Colour ivory (optional anthracite)
- Tests: BImSchV. 2nd stage, DIN EN 13240, Aachen/Munich/Regensburg regulation, Ecodesign 2022,
- Operation possible with type A1 : yes
- Operation possible with type A : --
- Windscreen flushing: yes
Storage set on top
Stainless steel railing handle
Glass shelf
black eboris ultra
Smart fireplace assistance functions
S-Thermatic NEO basic
S-USI II for wood-burning stoves (factory-fitted)
Black Edition: incl. eboris 1300 ultra black, railing handle black, air control lever black and signet black.
Important note: Before purchasing, please speak to your local district chimney sweep and obtain authorisation from them to operate the desired fireplace.
Manufacturer: Spartherm Feuerungstechnik GmbH
Maschweg 38
D-49324 Melle
Tel.: +49 5422 9441-0
Fax: +49 5422 9441-14
www.spartherm.com
Protective measures/safety instructions for installation (wood fires and stoves)
The following protective measures and safety instructions must be strictly observed:
- Fireplaces may only be installed in rooms and in places where the location, structural circumstances and type of use do not present any hazards.
- No modifications may be made to the appliance.
- Only use the approved system for exhaust gas removal/combustion air supply.
- Work on the stove system Installation, commissioning, maintenance and servicing work on the appliance may only be carried out by an authorized specialist company.
as the safety and functionality of the system depend on proper installation. - The installation must be carried out by a registered specialist company, as the safety and functionality of the system depend on proper installation. You must observe the applicable trade regulations and building regulations.
- Fireplaces must be installed in an operationally safe and fireproof manner so that hazards and unreasonable nuisances cannot occur. They must be fit for purpose for a reasonable period of time.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
